Municipal Water Treatment System - Beijing, China

View of a water pump system with black pipes, a pump connection flange, and a yellow heat exchange or radiator at the bottom, with water below.

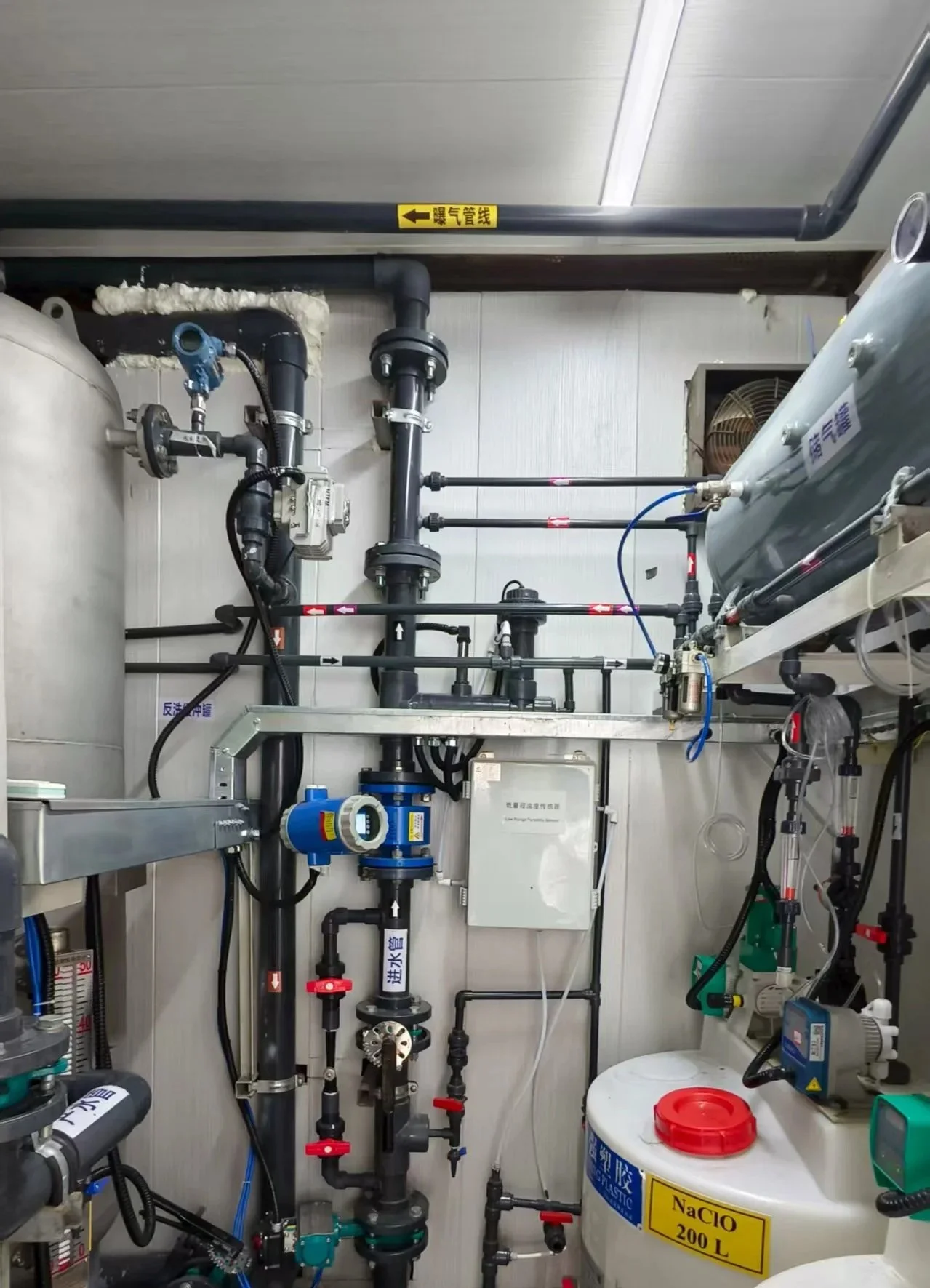

A room with various plumbing pipes, valves, and equipment, including a large white tank with a yellow label, and an electrical box mounted on the wall.

Project Overview

Application: Municipal Water Treatment

Location: Beijing, China

Technology: Flat-Sheet Ceramic Membrane Filtration

Treatment Process

Process Configuration: Chemical-free flat-Sheet ceramic membrane filtration

  • Membrane Flux: 80 L/m²·h

  • Total Membrane Area: 90 m²

  • Module Assembly: Integrated Flat Sheet Membrane Configuration

Project Scope & Services

Engineering Package: Sand Filter Backwash Water Solution, including:

  • Process Design and Engineering

  • Equipment Supply and Procurement

  • Installation and Commissioning

  • System Start-up and Operator Training

  • Water Quality Testing and VerificationProcess Solution

This treatment system employs ceramic flat-sheet membrane technology to achieve secondary filtration of sand filter backwash water through modular assembly. It operates per the client's specified process parameters, delivering treated water quality meeting client requirements.

Design Performance Standards

Effluent Turbidity: ≤0.2 NTU

System Availability: High reliability with minimal downtime

Project Benefits & Outcomes

Space Efficiency: Compact modular design significantly reduces footprint requirements

Economic Benefits:

  • Low Capital Expenditure (CAPEX)

  • Reduced Operating Expenditure (OPEX)

  • Highly cost-effective pretreatment solution

Technical Achievements: Fully meets design performance metrics, enables reliable automated operation, and is suitable for continuous municipal water filtration and upgrading applications.
